Snowflake Integration User Guide

Technical Documentation and Implementation Guide​

Overview​

This document provides comprehensive guidance for integrating Snowflake with the StreamSpace platform. The integration enables seamless data operations between your Snowflake instance and StreamSpace workflows, allowing for sophisticated data processing and analytics capabilities.

Prerequisites​

Before beginning the integration process, ensure you have:

  • An active Snowflake account
  • Administrative access to StreamSpace platform
  • Necessary permissions to create integrations
  • Required Snowflake account credentials and configuration details

Authentication Methods​

The integration supports database connection authentication with the following required parameters:

Connection Parameters​

  • Account Name: The unique identifier in your Snowflake URL (format: xxx.region.snowflakecomputing.com)
  • Database: Target database name for the connection
  • Warehouse: Virtual warehouse for query execution and data operations
  • Username: Authorized Snowflake user credentials
  • Schema: Target schema for data operations
  • Role: Security role for connection permissions
  • Client Session Keep Alive: Optional setting for maintaining persistent connections

Integration Setup​

Step 1: Accessing Integration Configuration​

Navigate to the StreamSpace platform's integration section to view existing Snowflake integrations. The dashboard displays all configured Snowflake accounts and their details.

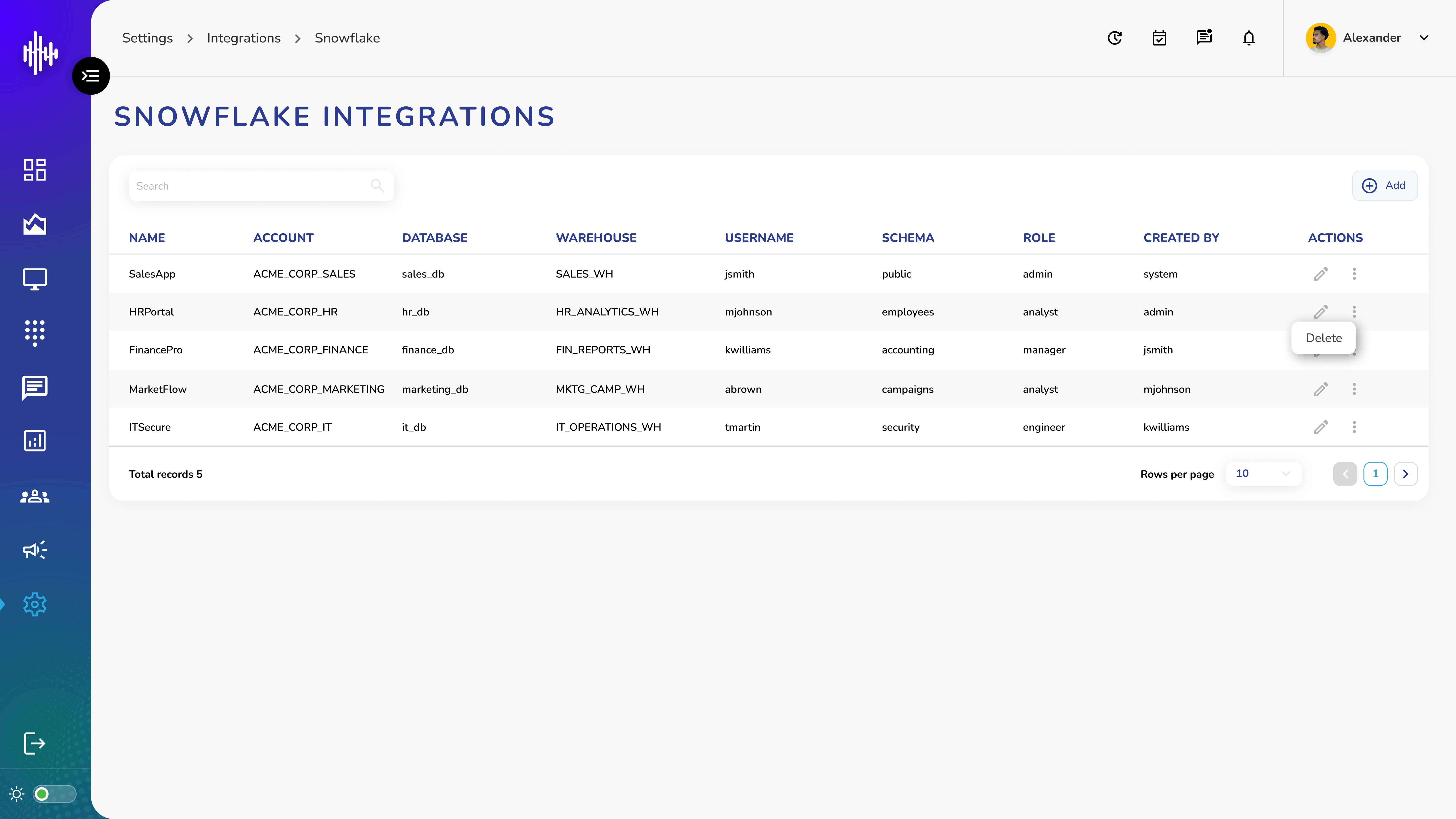

Snowflake Integrations Dashboard Figure 1: Snowflake Integrations Dashboard showing existing integrations

Step 2: Creating New Integration​

  1. Click the "+ Add" button in the Snowflake Integrations interface
  2. In the configuration form, complete the following required fields:
    • Name (Integration identifier)
    • Account details
    • Database configuration
    • Warehouse selection
    • Username
    • Password
    • Schema definition
    • Role assignment
  3. Configure optional settings such as Client Session Keep Alive

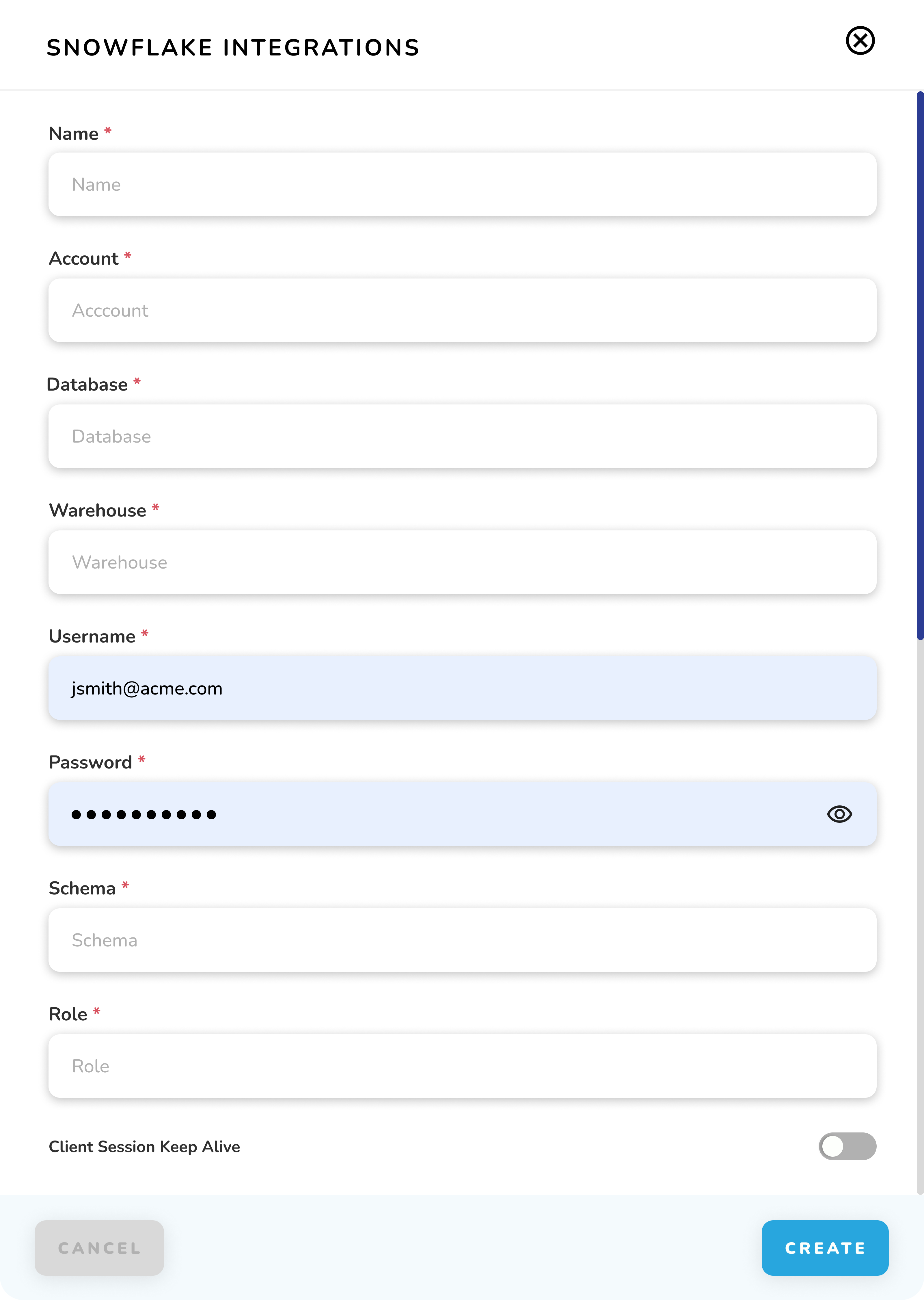

Snowflake Integration Configuration Figure 2: New Snowflake Integration Configuration Form

Workflow Configuration​

Step 1: Accessing Workflow Editor​

Access the Flow Editor in StreamSpace to begin configuring your Snowflake workflow. The left sidebar contains all available components, including Snowflake-specific nodes.

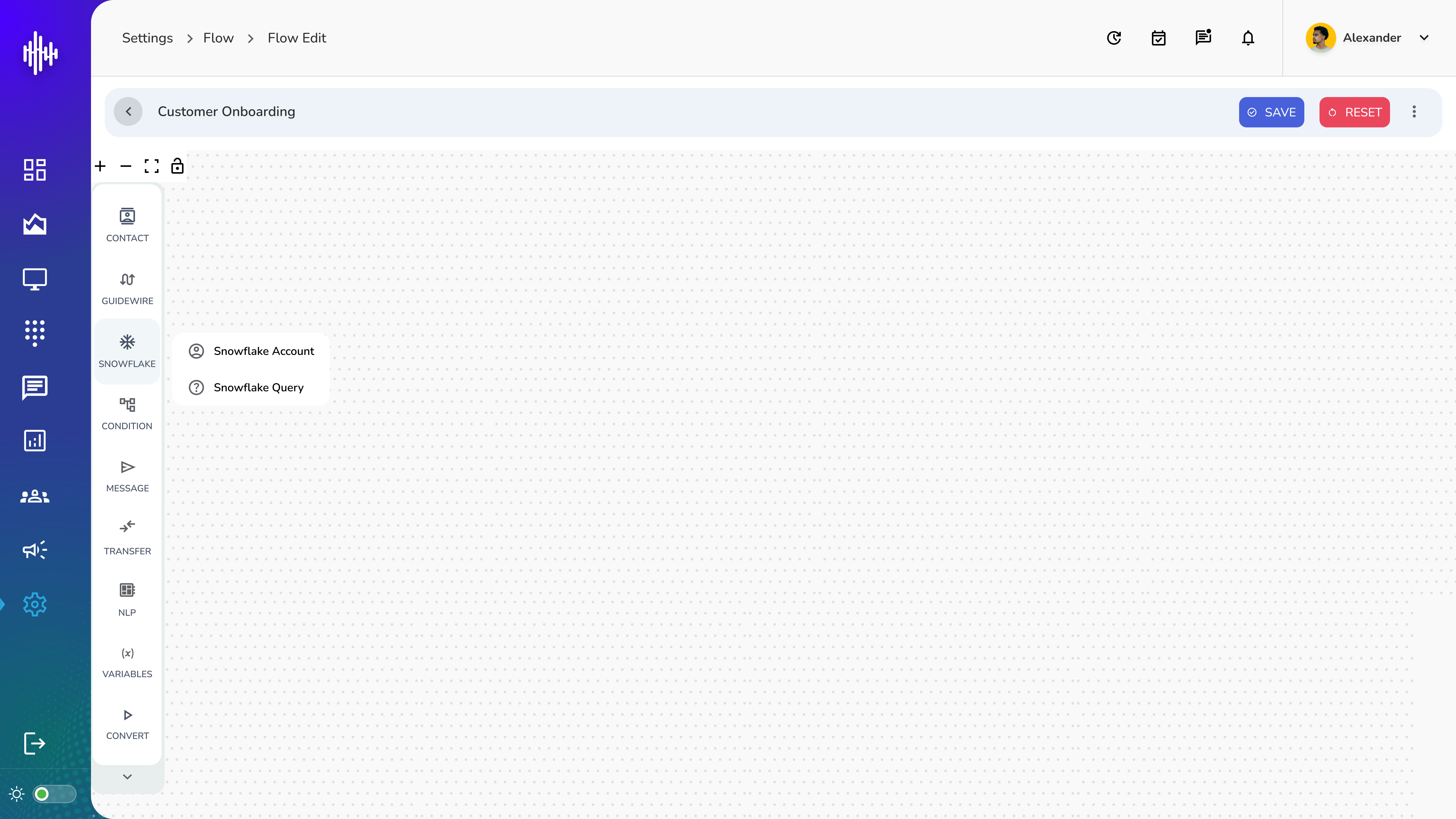

Workflow Editor Interface Figure 3: StreamSpace Flow Editor with Snowflake Components

Step 2: Adding Snowflake Nodes​

  1. Drag the Snowflake node from the sidebar to your workflow
  2. Select your configured Snowflake account from the dropdown menu
  3. Configure the node settings as needed

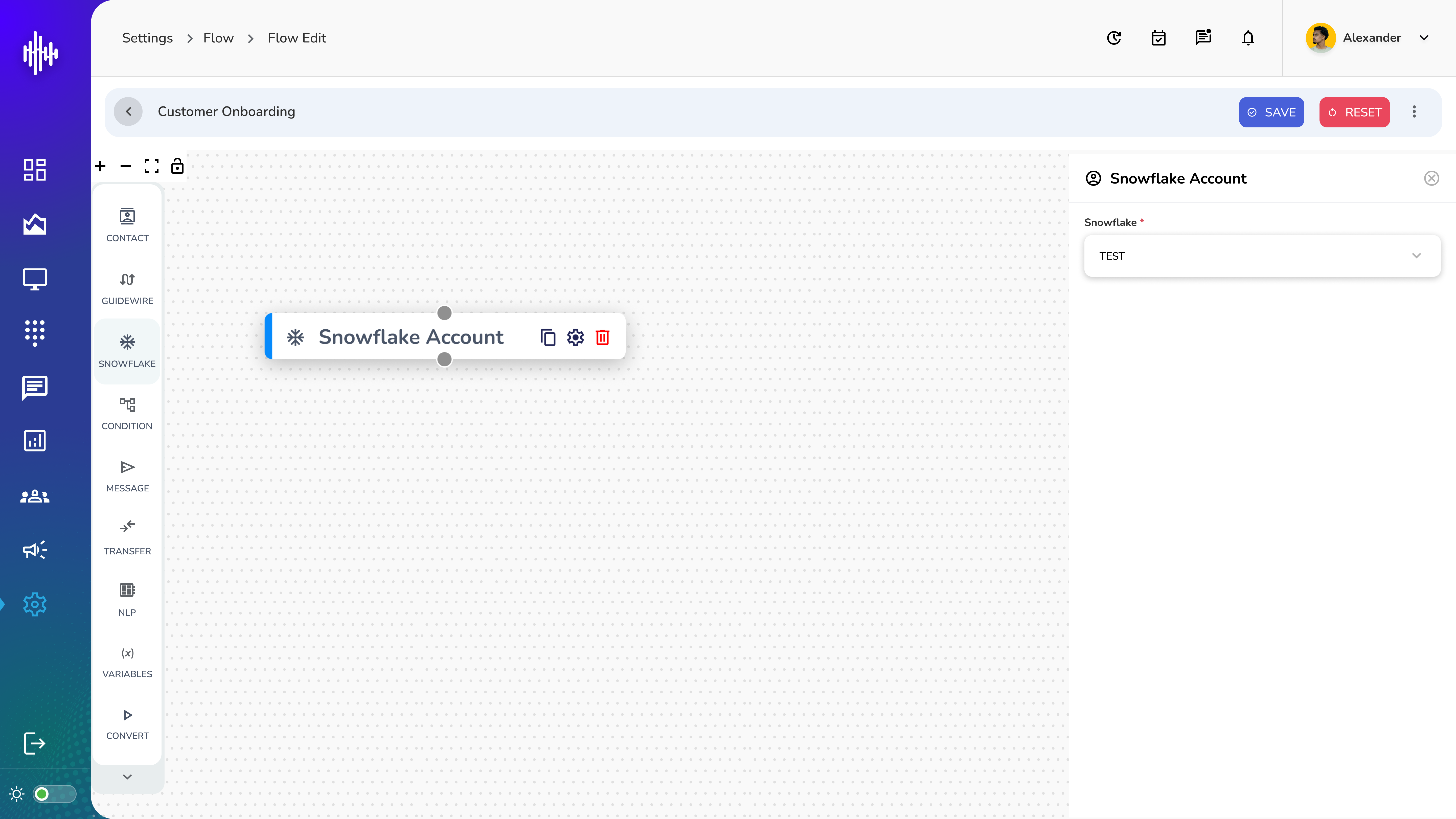

Snowflake Account Selection Figure 4: Snowflake Account Selection in Workflow

Query Configuration​

Setting Up Queries​

The Snowflake Query node allows you to execute SQL queries against your Snowflake database. Configure your queries with proper parameters and handle success/failure scenarios appropriately.

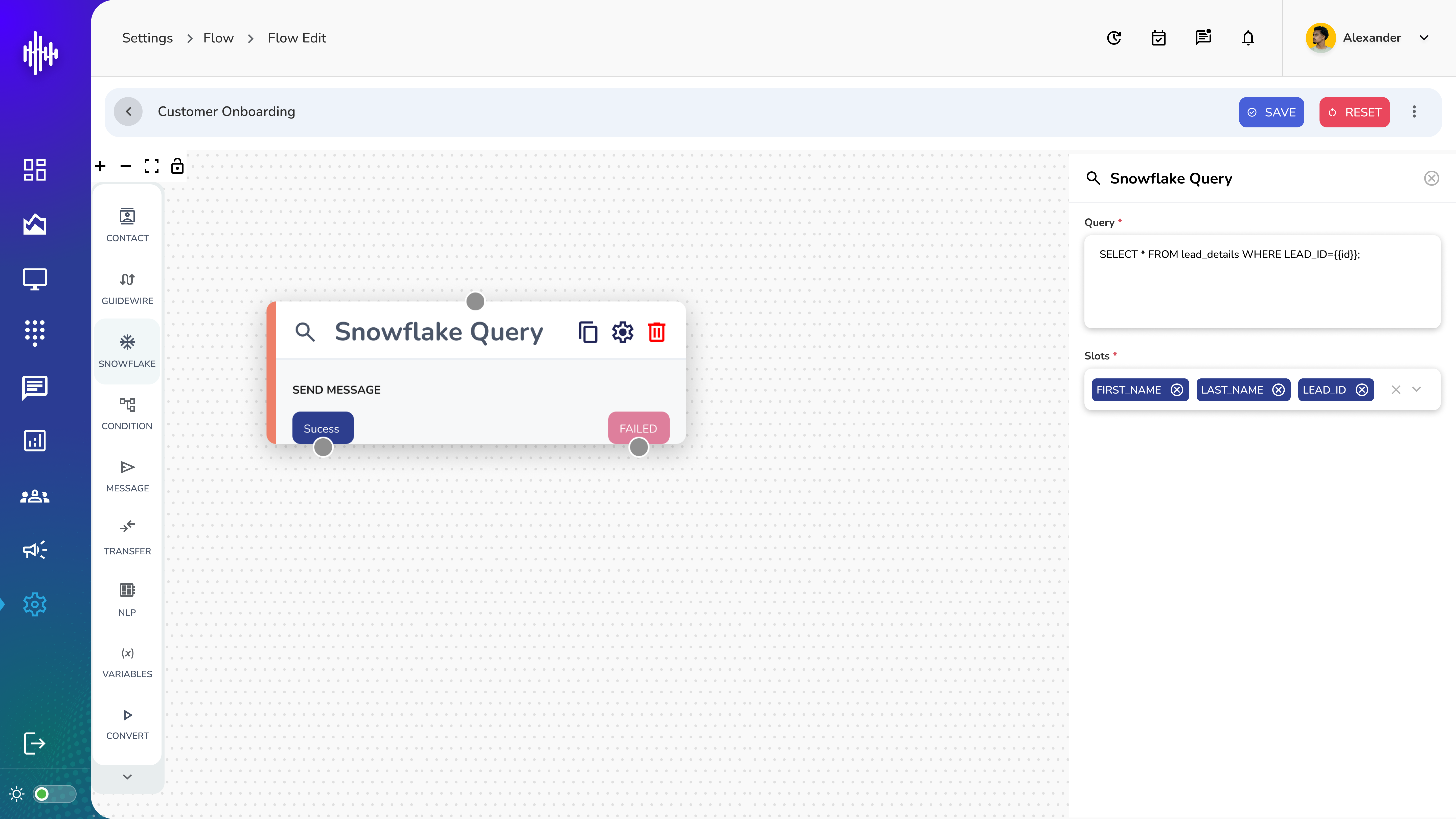

Snowflake Query Configuration Figure 5: Snowflake Query Node Configuration

Query Components​

  • Query Editor: Input area for SQL statements
  • Parameter Selection: Dynamic field mapping (e.g., FIRST_NAME, LAST_NAME, LEAD_ID)
  • Success/Failure Handling: Built-in error management and success path configuration

Best Practices​

  1. Security

    • Regularly rotate credentials
    • Use minimum required permissions
    • Enable session management when needed

  2. Performance

    • Optimize warehouse selection
    • Configure appropriate timeouts
    • Monitor query performance

  3. Maintenance

    • Regular testing of connections
    • Monitoring of integration health
    • Documentation of custom configurations

Troubleshooting​

Common issues and resolutions:

  1. Connection Failures

    • Verify credentials
    • Check network connectivity
    • Confirm warehouse availability

  2. Query Errors

    • Validate SQL syntax
    • Confirm schema permissions
    • Check parameter mapping

Support and Resources​

  • Snowflake API Documentation
  • SQL Command Reference
  • StreamSpace Platform Support
  • Integration Support Team
